2.2 Method

Figure 1: An Indycam.
\includegraphics{indycam.ps}

The cameras used for the experiment were two of the webcams that SGI shipped with its Indy range of workstations (dubbed Indycams, Figure 1).

Figure 2: An \( \textrm {O}_{2}\)cam.
\includegraphics{o2cam.ps}

These were preferable those that come with the \( \textrm {O}_{2}\) workstations (dubbed \( \textrm {O}_{2}\)cams, Figure 2) for simple logistical reasons -- it's very easy to strap two of the Indy cameras together (``back to back''), with the lenses being separated by a good approximation to a typical human eye separation (Figure 3).5

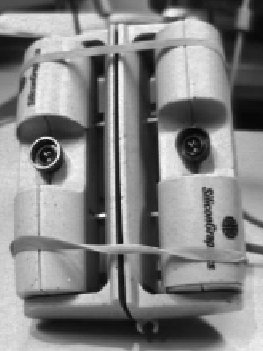

Figure 3: A stereocam formed by two Indycams (Figure 1) strapped back to back.
\includegraphics{stereocam3.ps}

The most important detail here is that the cameras are laying on their sides; the images obtained from each need to be rotated \( 90^{\textrm{o}} \) clockwise and counter-clockwise as appropriate.
